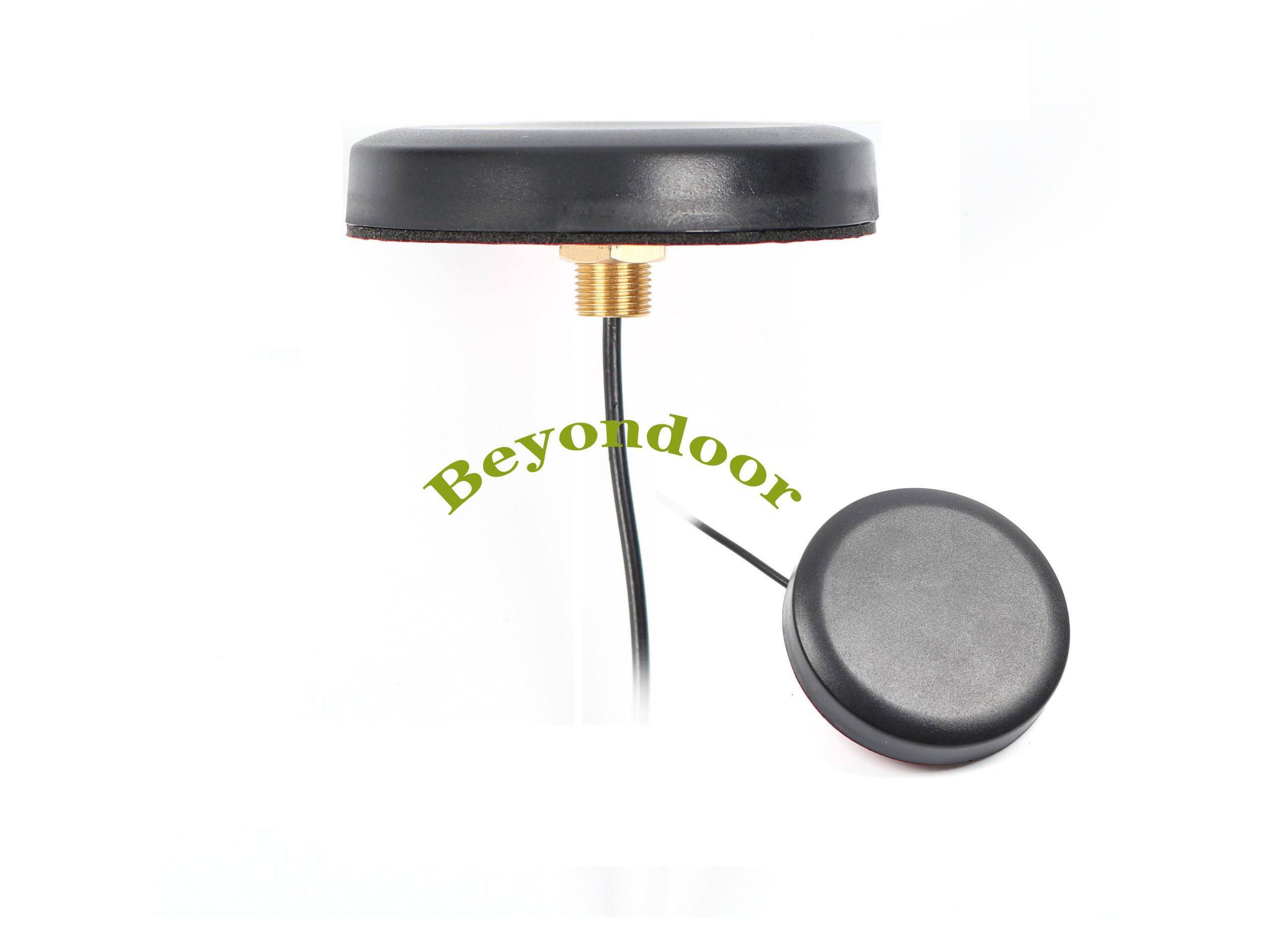

P/N:BY-GSM-09，GSM External Antenna,outdoor antenna screw mount BNC male

Model:BY-GSM-09

Frequency Range（MHz）  824-960Mhz 1710-1990Mhz
Bandwidth（MHz） 136/280
VSWR ≤1.5
Gain（dBi） 2
Max Input power（W） 60
Input Impedance（Ω） 50
Polarization Type Vertical
Antenna size: 80 mm(D)×13mm(H)
Cable Length﹙mm﹚ 2500 ,3000,5000 etc.
Cable Type RG174
Connector Type SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX or other
Hole Mounting
Housing Black
Storage Temperature -45℃ to +75℃
Operating Temperature -45℃ to+75℃
