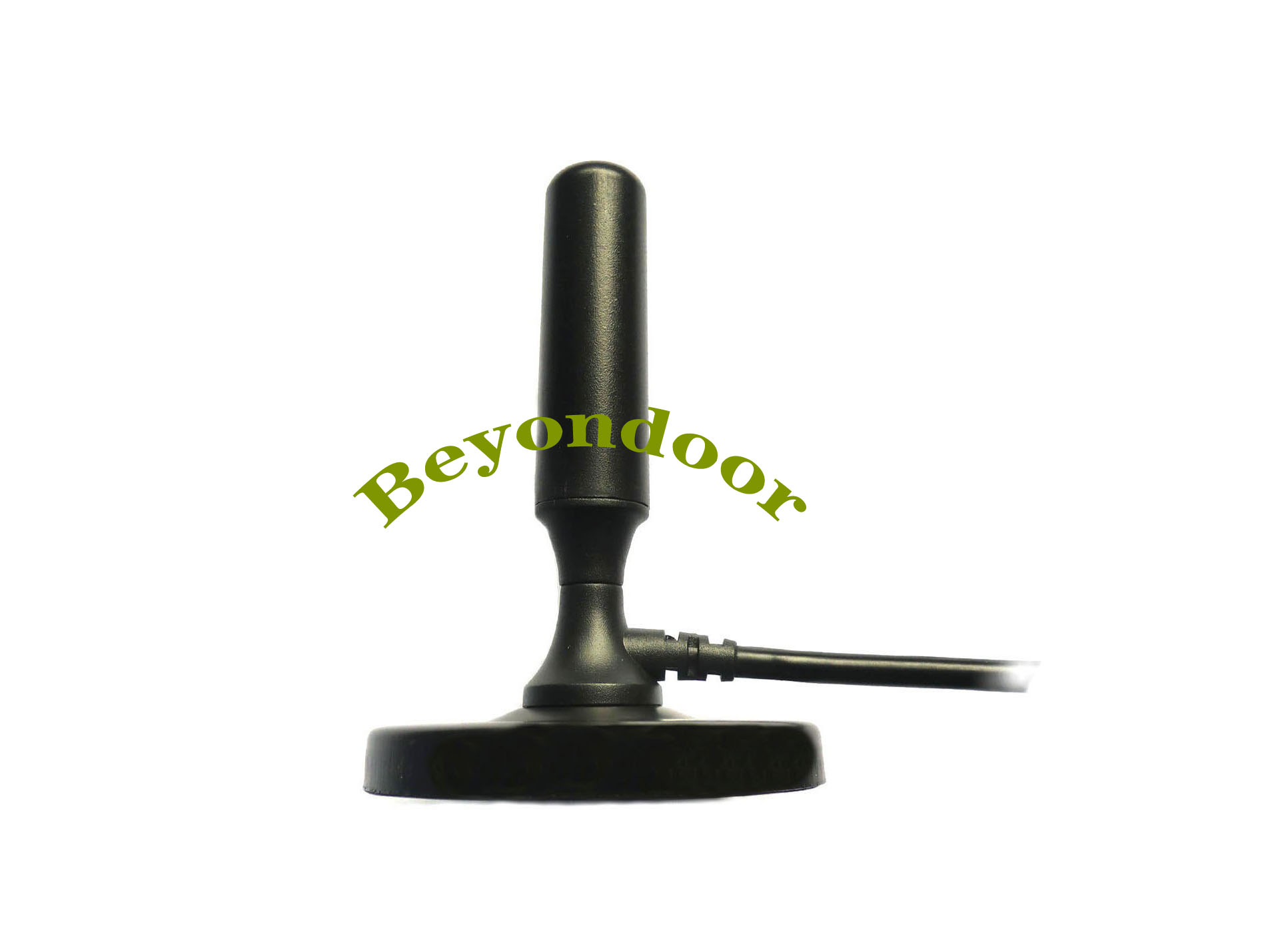

Model: BY-GSM-74
Frequency（MHz）：850-1900/900-1800
Bandwidth（MHz）：100
VSWR ≤1.5
Gain（dBi）：5
Max power（W）：50
Nominal Impedance（Ω）：50
Polarization ：Vertical
Weight: 0.2KG
Cable Length（m）：2.5
Cable Type：RG174
Connector ：SMA male or customized
Height : 107mm
Radiation : Omini -directional
Max Wind Speed：230km/h
Max Diameter ：Φ74mm
P/N:BY-GSM-11-01，GSM External Antenna, screw mount for GSM AMPS device SMA male
P/N:BY-GSM-50,GSM External Antenna, strong magnetic mount 900 1800mhz frequency
P/N:BY-GSM-20-09，GSM External Antenna,9dbi high gain strong magnetic mount for vehicle
P/N:BY-GSM-06-05,GSM External Antenna,5dbi gain 45mm base size magnetic mount
P/N:BY-GSM-06-01,GSM External Antenna, magnetic mount 850,900,1800,1900mhz frequency SMA male
P/N:BY-GSM-10，GSM External Antenna, screw mount small size FAKRA female or SMA male
P/N:BY-GSM-09，GSM External Antenna,outdoor antenna screw mount BNC male
P/N:BY-GSM-15，GSM External Antenna, magnetic GSM base GSM 900 1800MHZ frequency
P/N:BY-GSM-20-05，GSM External Antenna,Strong magnetic base mount BNC connector
P/N:BY-GSM-06,GSM External Antenna,hot sale high gain 7dbi 45mm base SMA male
